jetAxis 100
Inline marking for automated production processes
The REINER® jetAxis 100 is an industrial inline marking system for the automated coding of products, packaging and components directly in production lines. Using thermal inkjet technology (TIJ), the system prints texts, barcodes, QR codes, serial numbers, batch codes and variable data precisely on cardboard, plastic, wood, metal and other surfaces - without labels and without additional manual work steps.
Thanks to its compact design, sensor and encoder integration and print speeds of up to 500 mm/s, the jetAxis 100 is ideal for production, packaging and logistics processes with changing data and high demands on process reliability and flexibility.
Technical highlights
printing technology
Thermal Inkjet (TIJ), 300 dpi
Print speed
Up to 500 mm/s
Impression size
Up to 26 × 85 mm
Integration
Sensor, encoder & ERP connection
data transmission
USB, microSD & WLAN
special feature
Compact all-in-one inline printing system
Integrate production lines
Easy to integrate into existing systems.
Print variable data
Batches, serial numbers and codes in real time.
Up to 500 mm/s
Designed for fast production processes.
Suitable for continuous operation
Reliable even at high utilization.
Made in Germany
Development, production and support from Germany.
It's that simple

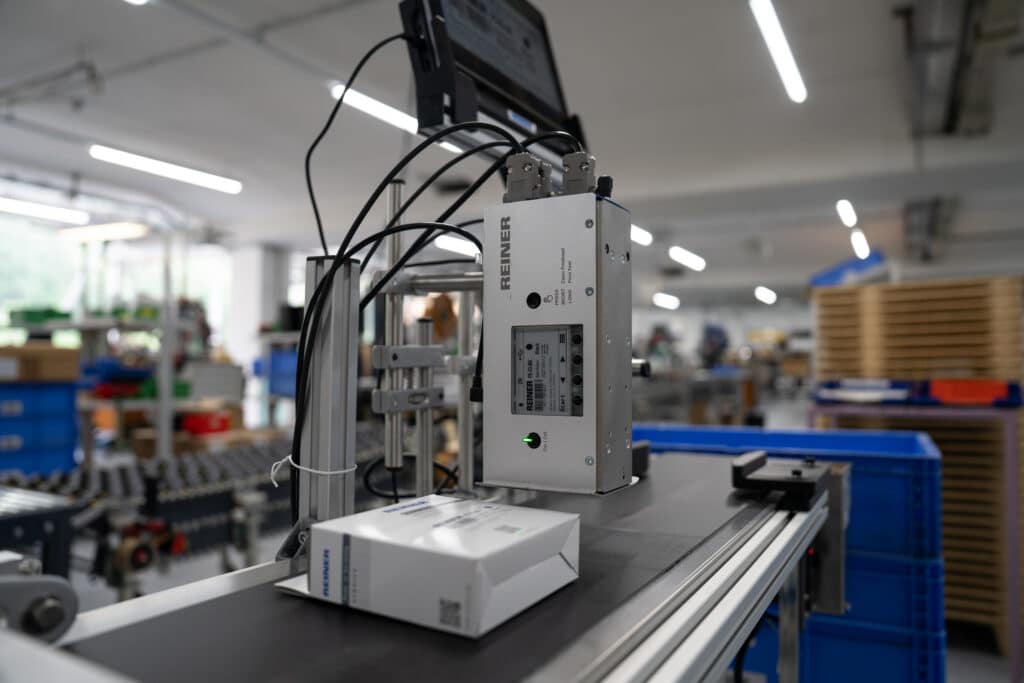

jetAxis 100 in use
The jetAxis is integrated into your production line and prints the required information directly onto the product or packaging without contact - at exactly the right moment.
The jetAxis 100 offers a range of unique features that we will be happy to advise you on personally. Find out more about the comprehensive Reiner service package - you are never alone with us.
1
Product is recognized
2
Signal to the jetAxis 100
3
Print image is applied without contact
4
Product continues to run - without standstill
Application examples
jetAxis 100 in use
The application examples show how versatile labeling can be implemented in everyday working life. Different content can be flexibly applied to different materials - clearly legible, neatly positioned and suitable for the respective application.
The jetAxis 100 offers a range of unique features that we will be happy to advise you on personally. Find out more about the comprehensive Reiner service package - you are never alone with us.
Graphics / Logos
Company logos, symbols and simple graphics are printed directly onto products, packaging or cartons - without labels and without additional work steps. Ideal for brand identification, product recognition and visual cues directly on the production line.
1D & 2D codes
Barcodes, QR codes and data matrix codes are applied automatically and precisely during the production process. Suitable for traceability, serial numbers, tracking and digital processing in logistics and industry.
Variable data
Batch numbers, serial numbers, consecutive numbering and variable production data are printed in real time. Ideal for automated processes with changing content and high process reliability.
Date & time
Production, inspection or time stamps are printed directly onto packaging and products - automatically updated and reliably legible. Ideal for documentation, quality assurance and legal labeling requirements.
Texts & Notes
Fixed or variable texts such as article information, inspection aids, safety instructions or shipping markings are printed directly inline. Flexibly adaptable and ideal for production, packaging and logistics processes.
Technical specifications
jetAxis 100 in use
| printing technology | Thermal Inkjet (TIJ), 300 dpi |
|---|---|
| Impression size | 26 × 85 mm (H × W) |
| Print speed | Up to 500 mm/s (30 m/min) |
| Repetition rate | 0 to 0.5 seconds |
| Pressure gap | Up to 8 mm |
| Print directions | Downwards & sideways |
| print images | Up to 255 storable |
| data transmission | USB, microSD card, WLAN |
| Interfaces | Sensor, encoder, alarm, SENSE |
| Print data from | PCset graphic, Word, Excel, ERP |
| Materials | Cardboard, plastic, wood, metal and much more. |
| Barcodes | 1D & 2D codes incl. QR & Data Matrix |
| Operation | Display with buttons |
| Languages | DE, EN, FR, ES |
| Supply | 24 VDC / 3A |
| Housing | Aluminum & stainless steel |
| Dimensions | 210 × 62 × 92 mm |
| Weight | 1.0 kg |
| Origin | Made in Germany |
Accessories and extensions
More possibilities. More comfort. More efficiency.
From the protective cover for optimum protection to the case for safe transportation - our recommended accessories support you where it counts.
Automation

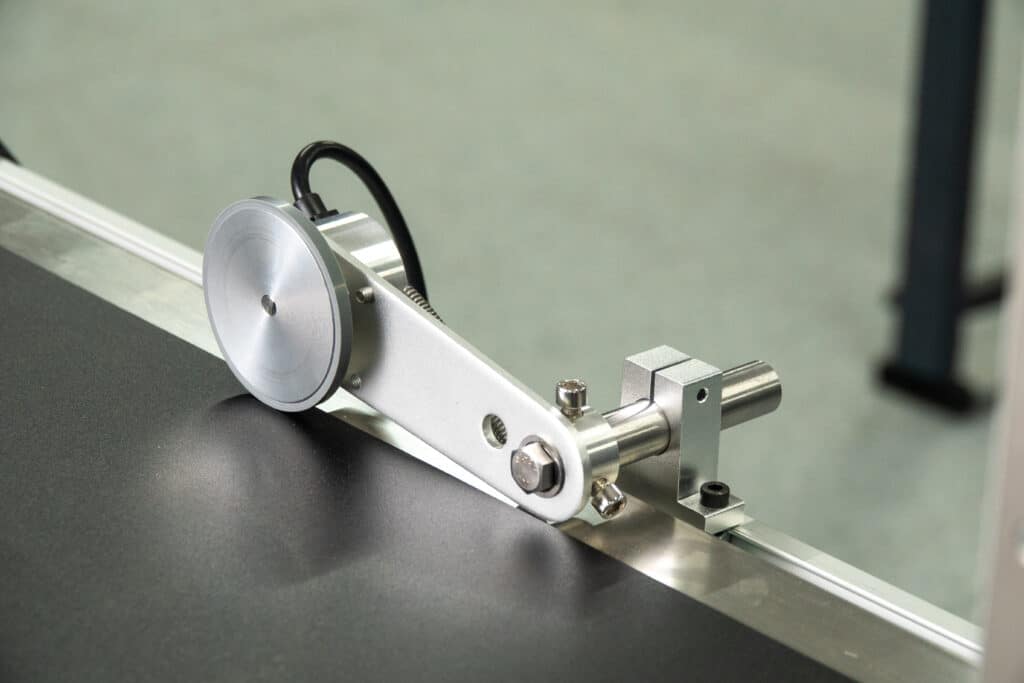

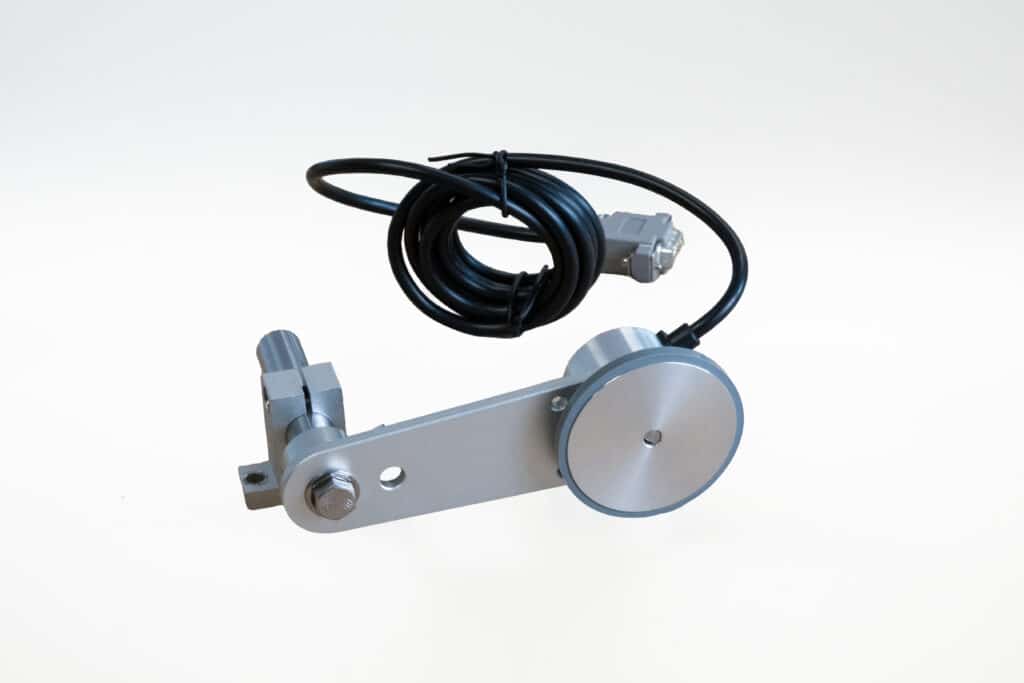

DLS40E-S3RV Encoder
Encoders for Detecting Movement on Conveyor Belts
NEW
sensory analysis

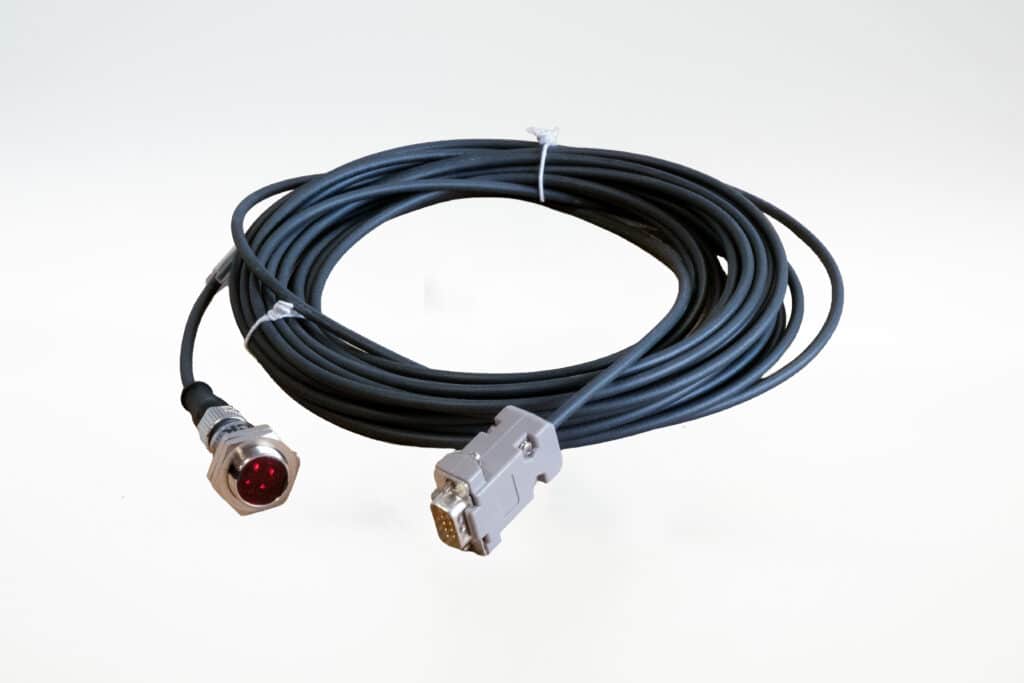

GRTE18S Photosensor
The GRTE18S photo sensor is used for non-contact optical object detection.
NEW

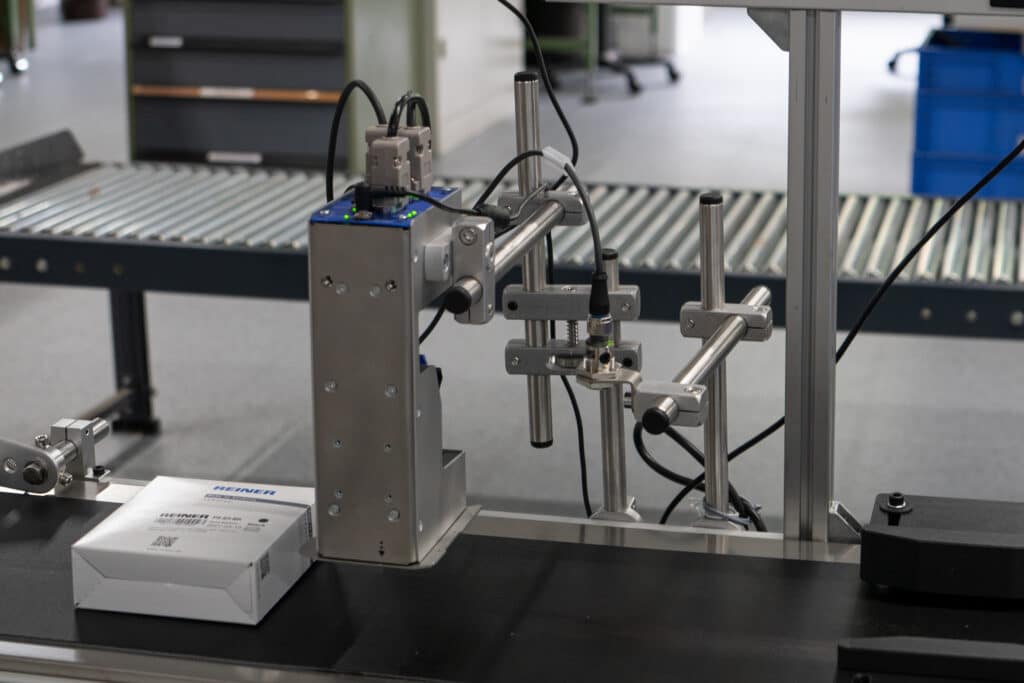

positioning
Tripod for a 16-mm-diameter photosensor
The tripod allows for flexible and stable mounting of sensors,
NEW
positioning
Fine adjustment Ø16 mm
The parallel clamp holder with an adjustment screw allows for precise fine-tuning of the jetAxis 100 print module or compatible sensors.
NEW

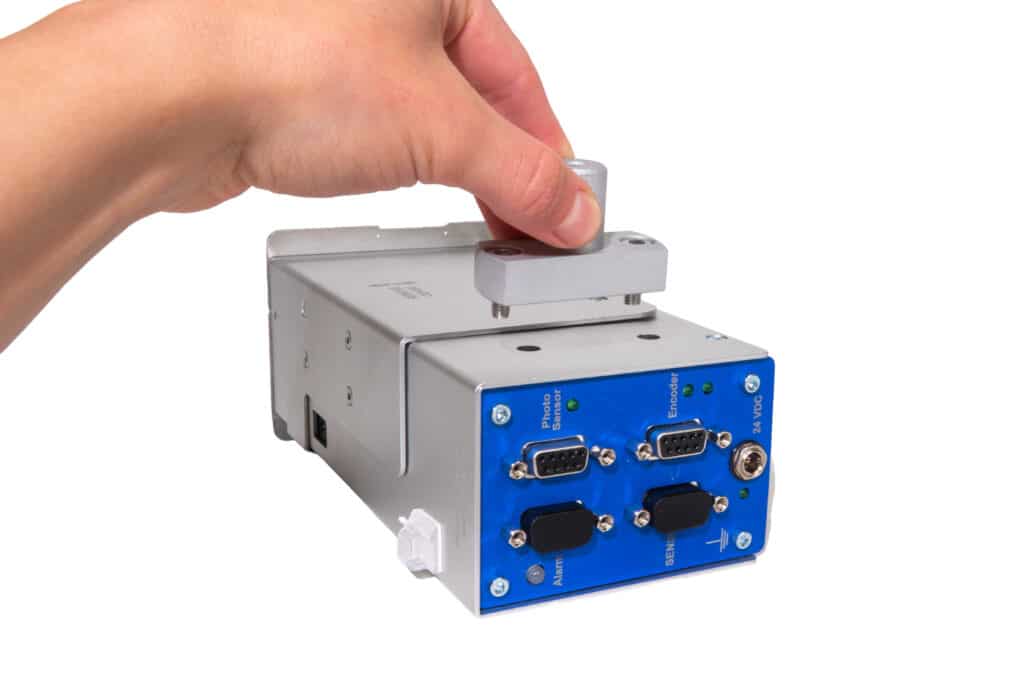

Mounting flange for secure installation
Mounting flange, Ø16 mm
The Ø16 mounting flange is used for secure installation and precise alignment of the REINER® jetAxis 100.
NEW
Fastening
Tripod for jetAxis Ø16 mm BASIC
Tripod for flexible and stable mounting of printing systems.
NEW
