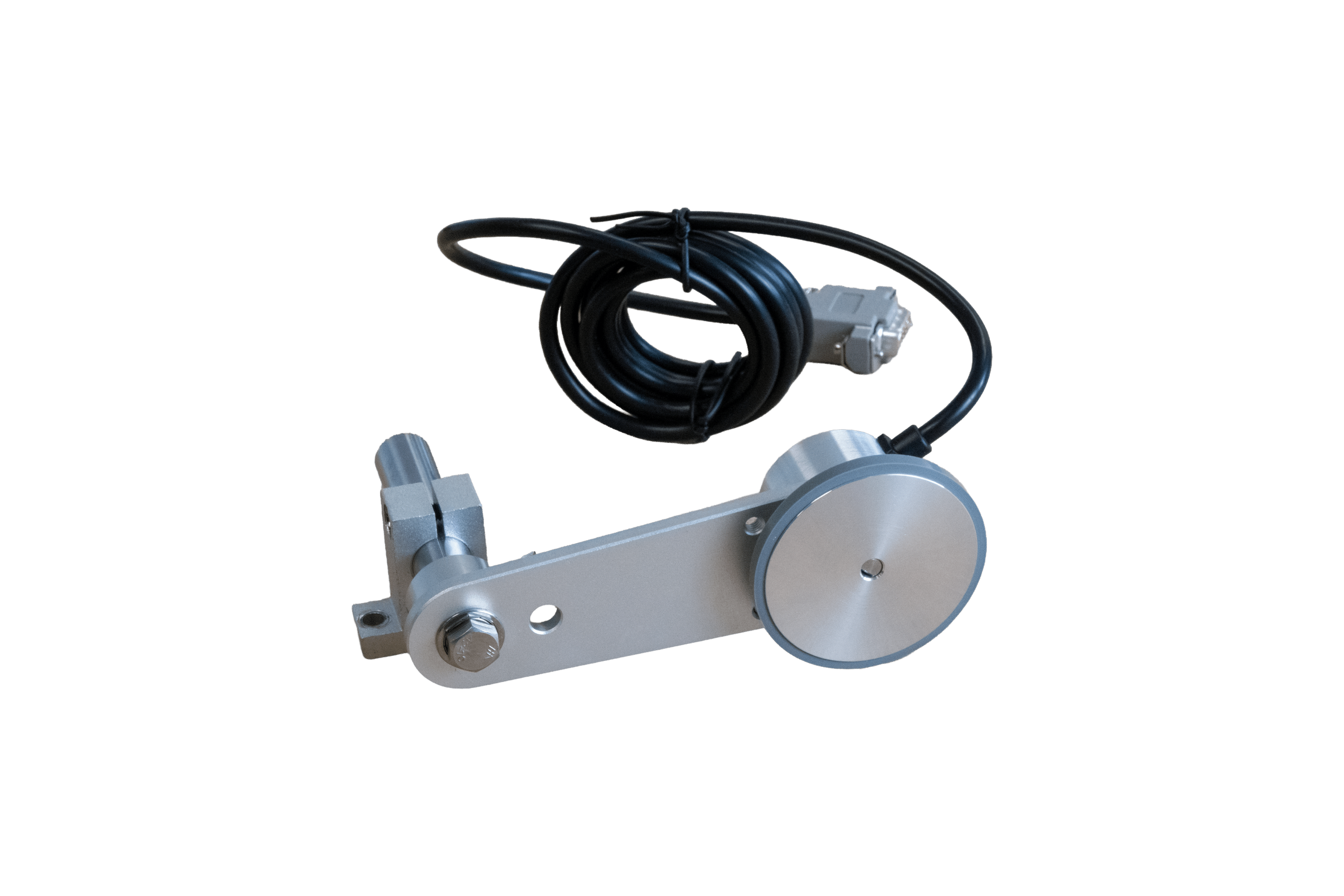

DLS40E-S3RV Encoder
Encoders for precise control of the printing process
The DLS40E-S3RV encoder detects the movement of conveyor belts or products and transmits the position signals to the REINER® jetAxis 100. The measuring wheel and spring arm ensure consistent contact with the conveyor surface and enable precise, position-accurate marking.
Technical highlights
Pulses per revolution
1.024
Measuring wheel circumference
200 mm
Measuring wheel surface
PU, smooth
Supply voltage
10–27 V
Compatibility
REINER jetAxis 100
certificates
CE certification
UKCA labeling
Technical specifications

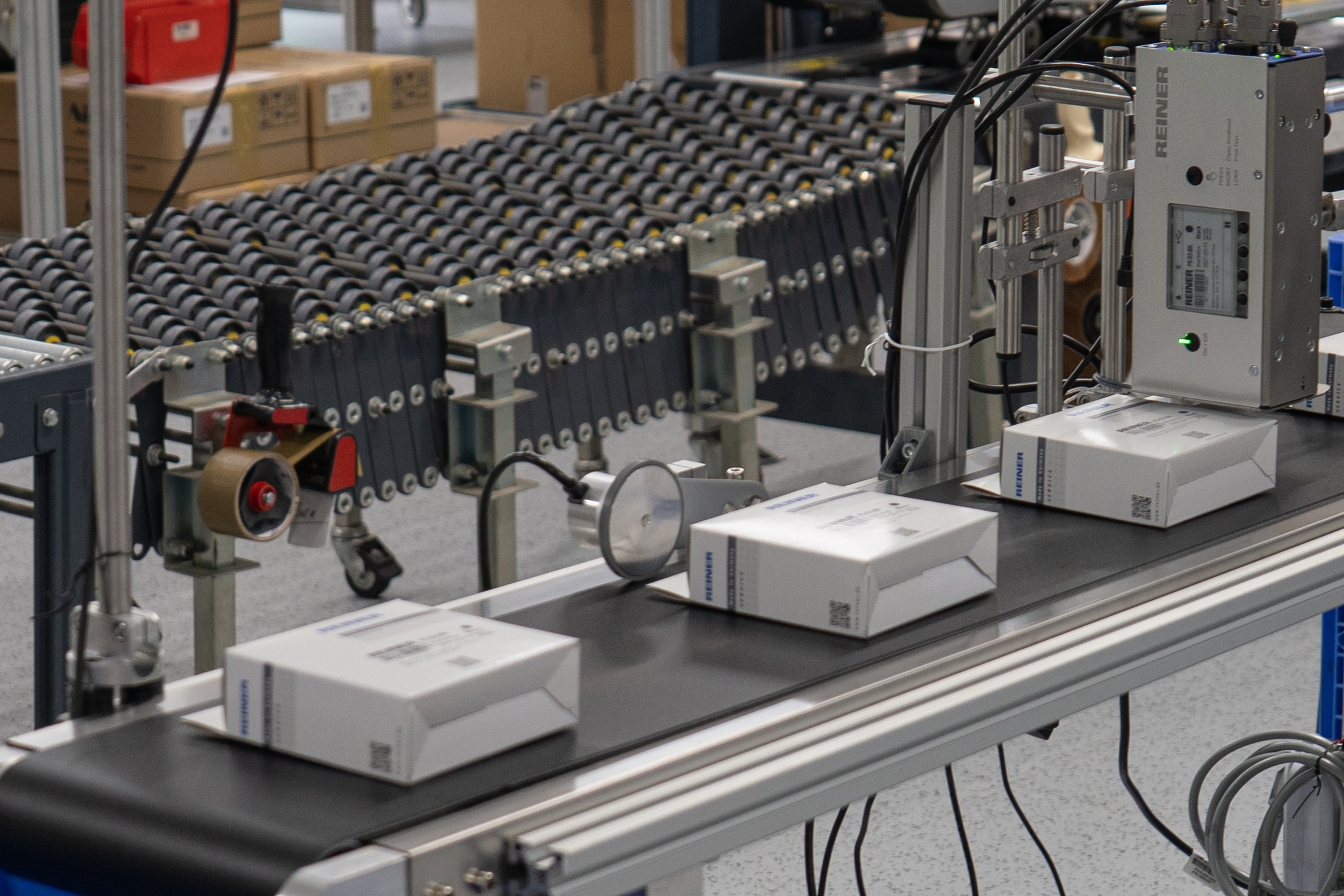

DLS40E-S3RV Encoder in use
| Pulses per revolution | 1.024 |
|---|---|
| Measurement step | 90° electric |
| Tactility | ≤ 0.5 ± 10 % |
| Compatible devices | REINER jetAxis 100 |
| Supply voltage | 10–27 V |
| Configuration | About jetAxis 100 or PCset graphic |
| Measuring wheel circumference | 200 mm |
| Measuring wheel width | 6 mm |
| Measuring wheel material | Aluminum / Polyurethane |
| Design | Incremental encoder with measuring wheel and spring arm |
