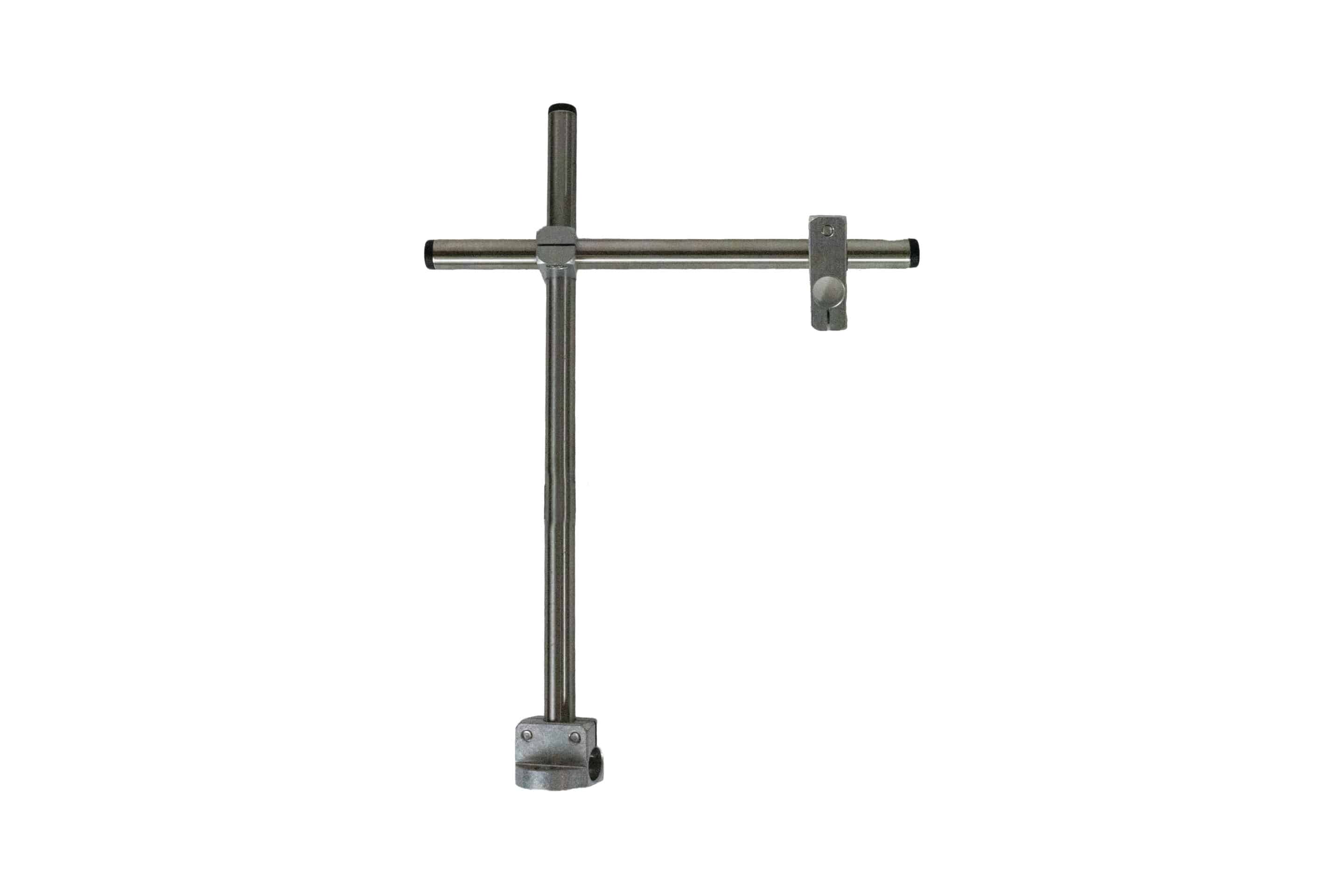

Tripod for jetAxis Ø16 mm BASIC
Tripod for flexible positioning of the jetAxis 100
The stand for the REINER® jetAxis 100 allows for stable and flexible positioning of the printing module on the production line. Adjustable stainless steel tubes and cross connectors make it easy to align the module with the conveyor belt and the product to be marked.
Technical highlights
Maximum Load Capacity
2 kg
Pipe diameter
Ø 16 mm
Tripod Legs
350 mm and 250 mm
Material of the tripod tubes
Stainless steel
Compatibility
REINER jetAxis 100
Technical specifications

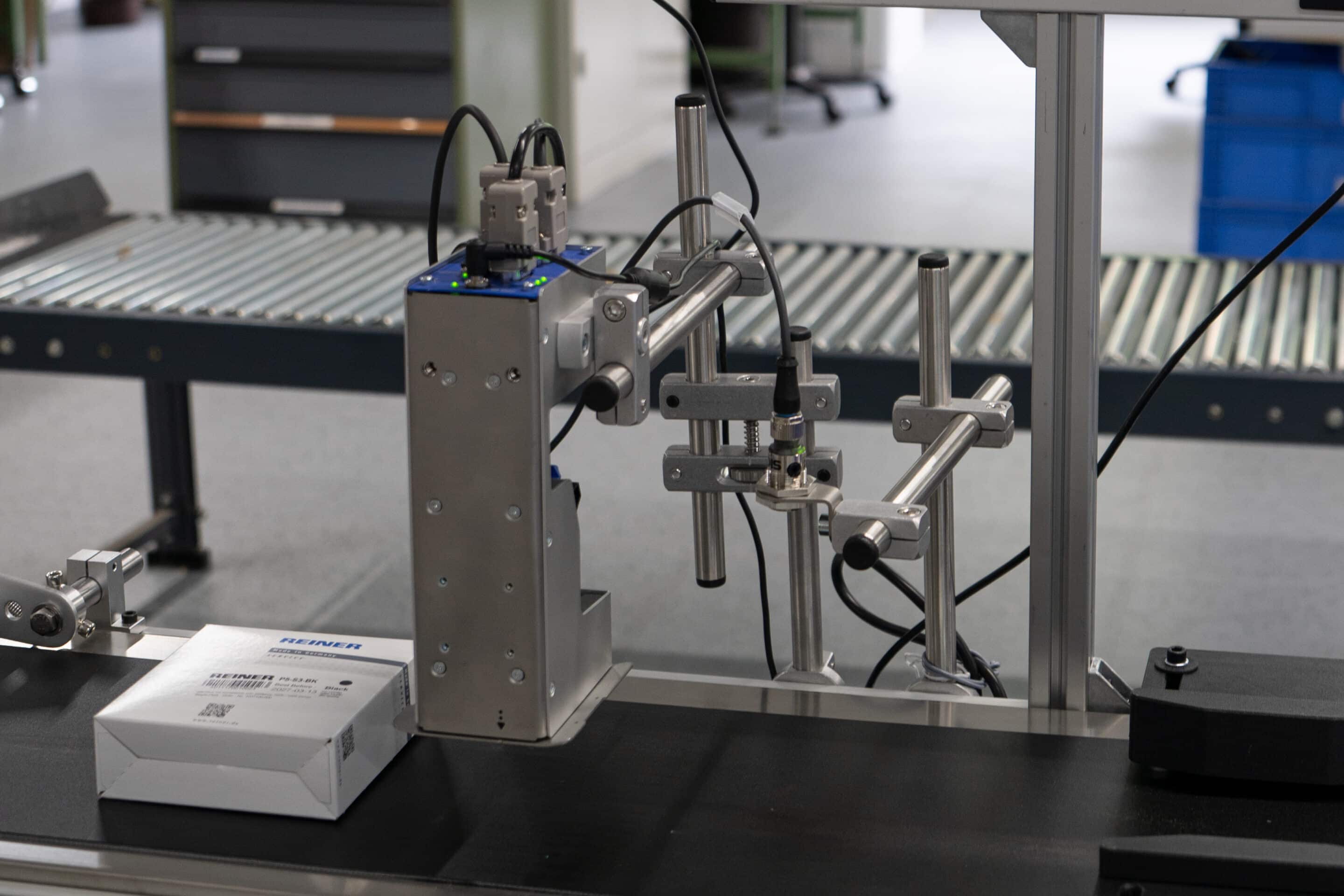

Tripod for jetAxis Ø16 mm BASIC in use
| Maximum Load Capacity | 2 kg |
|---|---|
| Pipe diameter | Ø 16 mm |
| Vertical tripod tube | Ø 16 × 350 mm |
| Horizontal tripod tube | Ø 16 × 250 mm |
| Material of the tripod tubes | Stainless steel |
| Number of Cross Connectors | 2 |
| Tools Required | Allen wrench, size 5 |
| Scope of delivery | 1 mounting base, 2 cross connectors, 2 tripod tubes |
| Compatibility | REINER jetAxis 100, mounting flange Ø 16 mm |

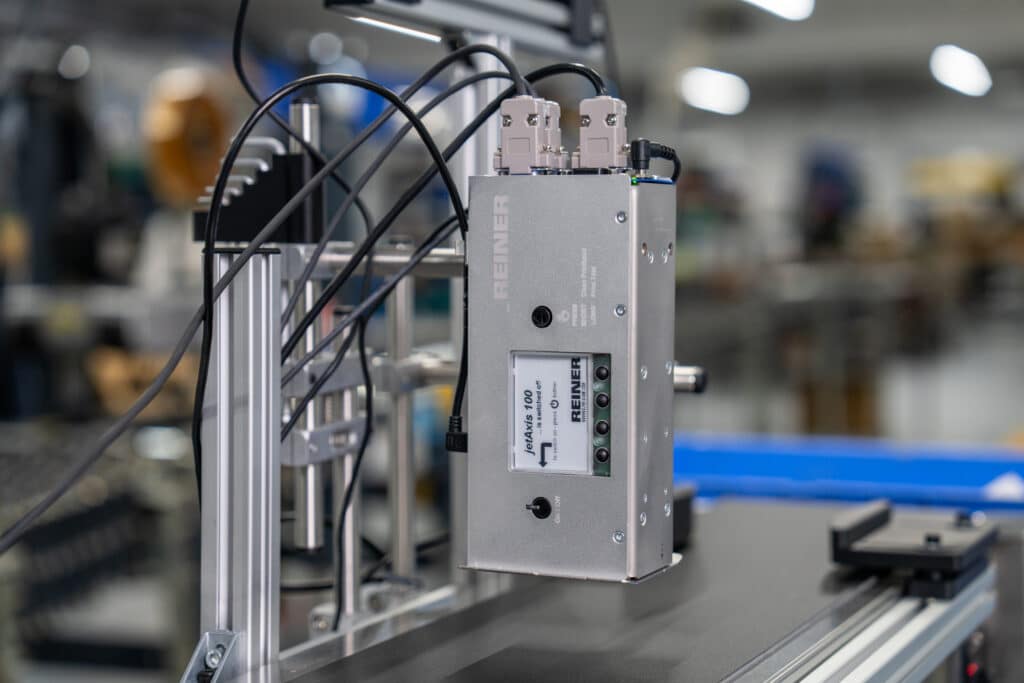

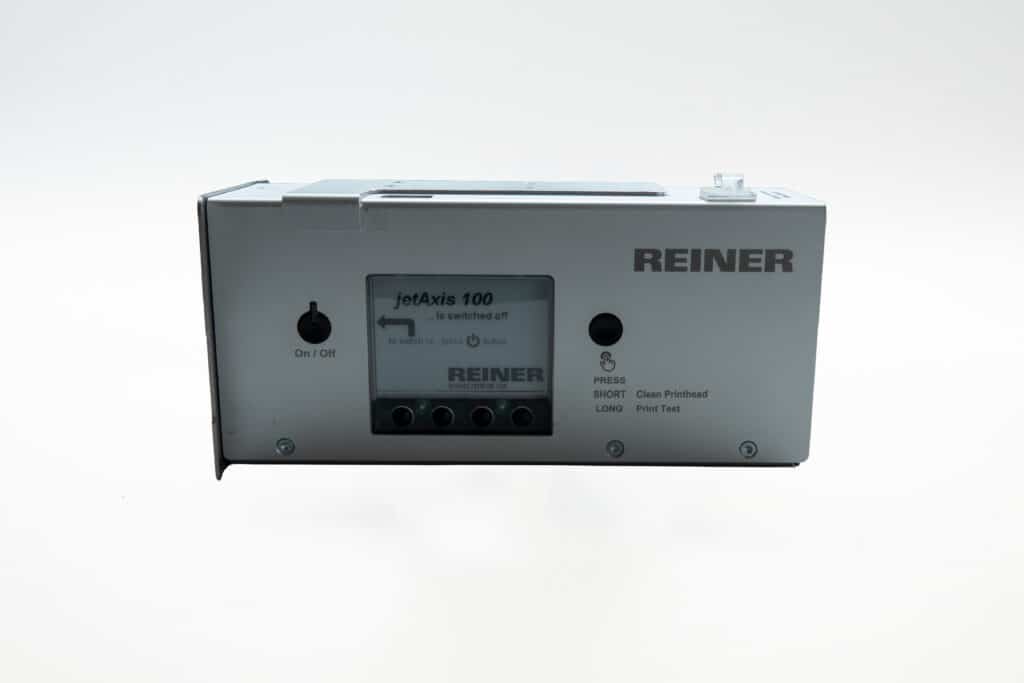

Suitable marking devices
More possibilities. More comfort. More efficiency.
Find the right labeling device for this accessory.
