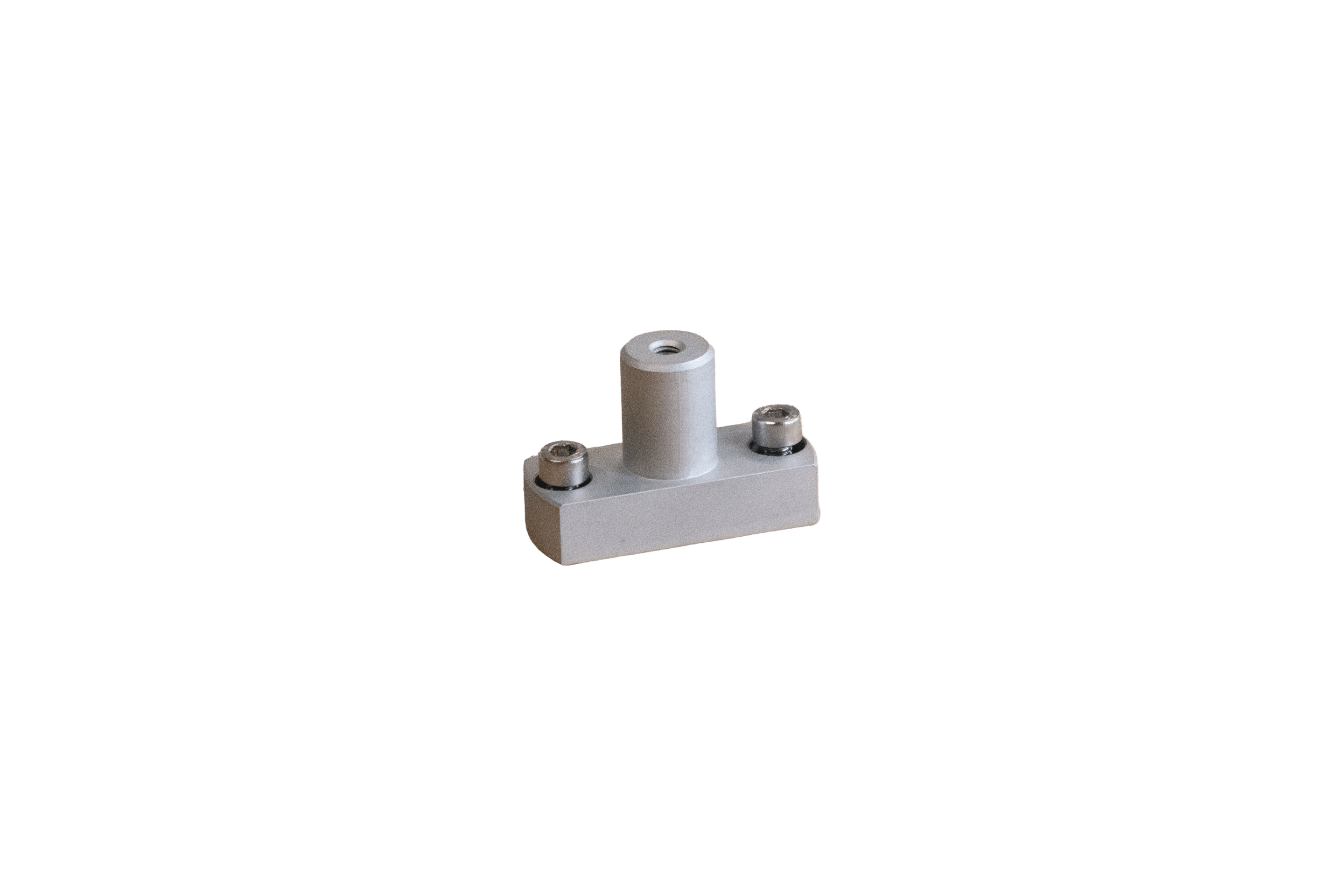

Mounting flange, Ø16 mm
Mounting flange for secure installation of the jetAxis 100
The Ø 16 mm mounting flange allows the REINER® jetAxis 100 to be securely connected to the appropriate stand system. Its compact design facilitates stable and space-saving integration of the print module into industrial systems.
Technical highlights
Maximum Load Capacity
2 kg
Dimensions
50 × 20 × 33 mm
Pivot diameter
Ø 16 mm
Compatibility
jetAxis 100 and 16 mm Ø BASIC Tripod

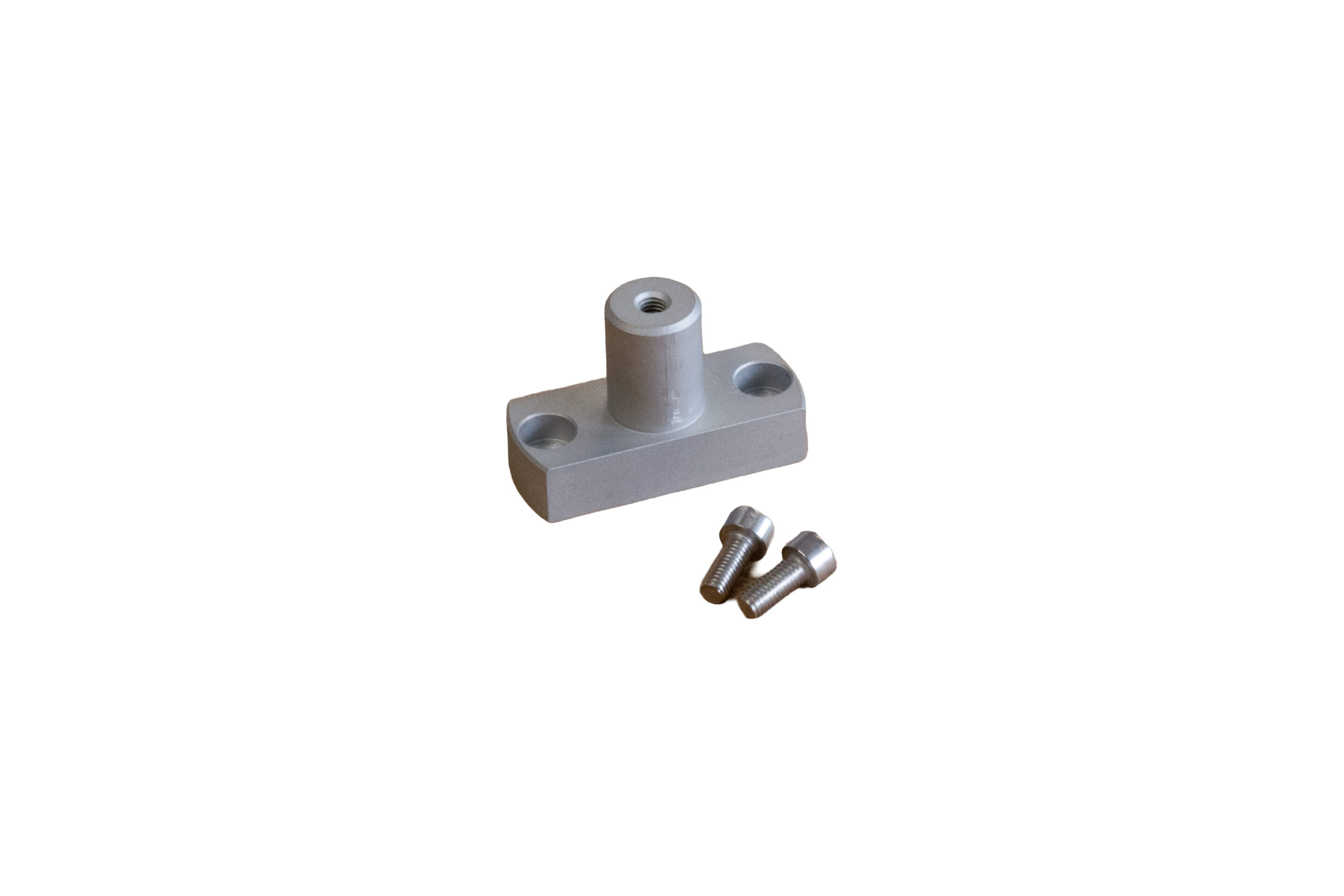

Scope of delivery
Mounting flange and screws
Technical specifications
Mounting flange, Ø16 mm in use
| Maximum Load Capacity | 2 kg |
|---|---|
| Dimensions | 50 × 20 × 33 mm |
| Pivot diameter | Ø 16 mm |
| Tools Required | Allen wrench, size 4 |
| Scope of delivery | 1 mounting flange, screws |
| Compatibility | REINER jetAxis 100, Tripod for jetAxis Ø 16 mm BASIC |
| Installation Request | Flat, stable mounting surface |
