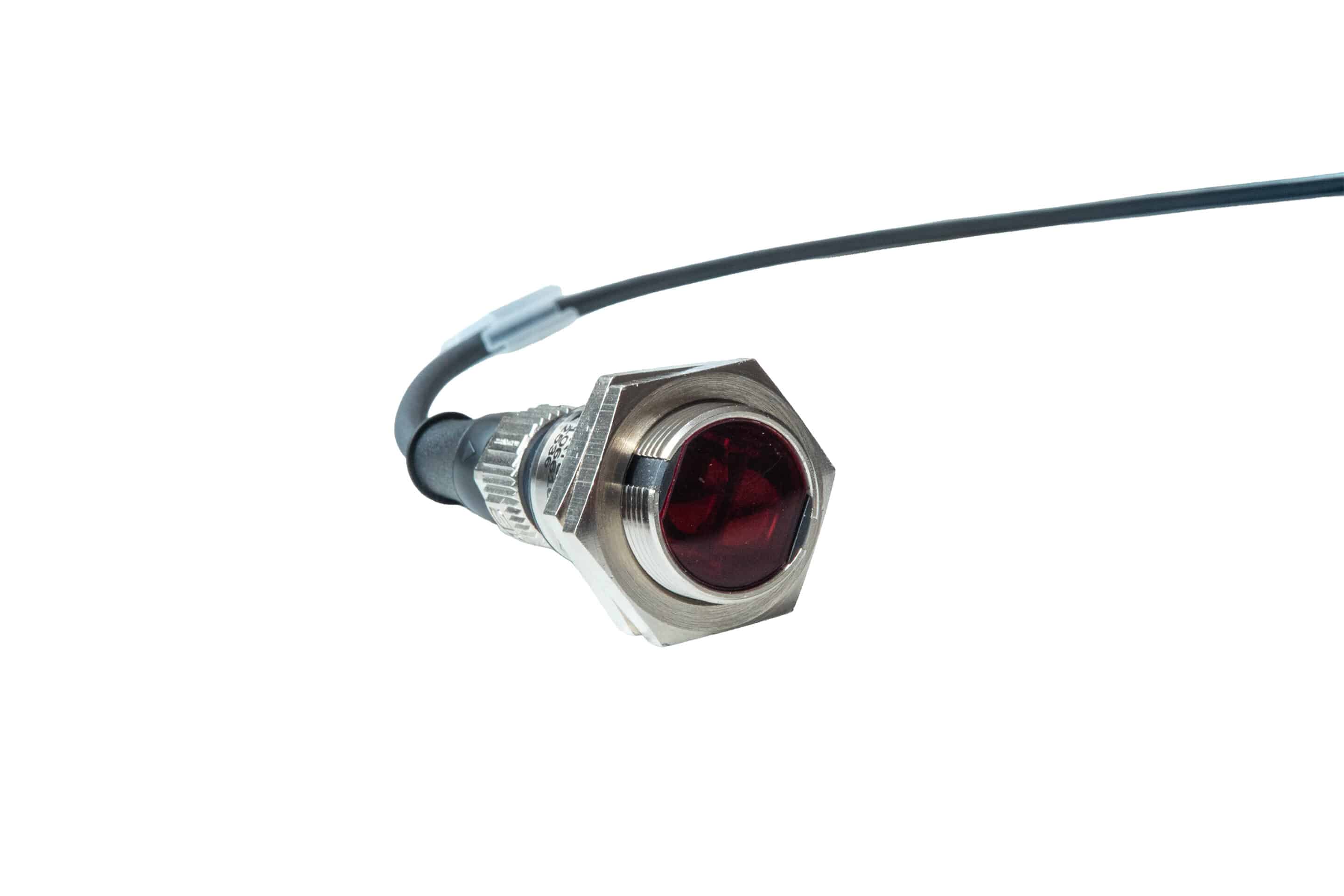

GRTE18S Photosensor
Photosensor for reliable product detection
The GRTE18S photo sensor detects products on the conveyor belt and triggers the printing process of the REINER® jetAxis 100 at the right moment. The adjustable sensitivity enables reliable detection of different object sizes, surfaces, and backgrounds.
Technical highlights
Detection range
5–100 mm
Supply voltage
10–30 V DC
Operating Temperature
−25 to +55 °C
Output current
< 100 mA
Configuration
About jetAxis 100 or PCset graphic
Technical specifications

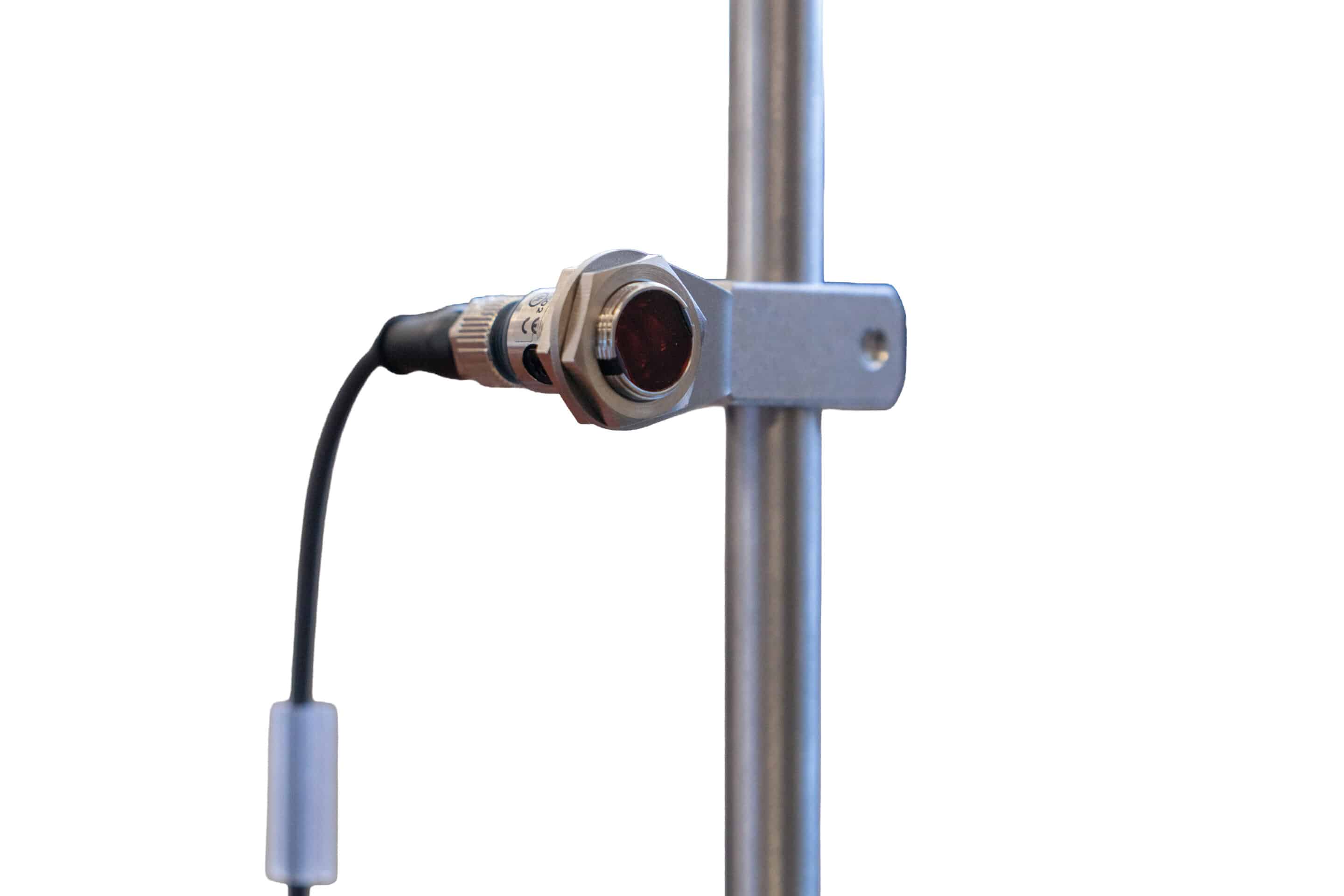

GRTE18S Photosensor in use
| Detection range | 5–100 mm |
|---|---|
| Maximum sensing range | 115 mm at R = 90 % |
| Supply voltage | 10–30 V DC, Class 2 |
| Output current | < 100 mA |
| Reduced output current | Max. 50 mA at over 24 V DC and over 49 °C |
| Operating Temperature | −25 to +55 °C |
| Hedging | 1 A, suitable for 30 V DC |
| Switch Output | PNP / L.ON |
| Sensitivity | Adjustable via a potentiometer |
| Configuration | About jetAxis 100 or PCSset graphic |
| Maintenance | Maintenance-free |
| Compatibility | REINER jetAxis 100, Tripod for Photo Sensor Ø 16 mm |

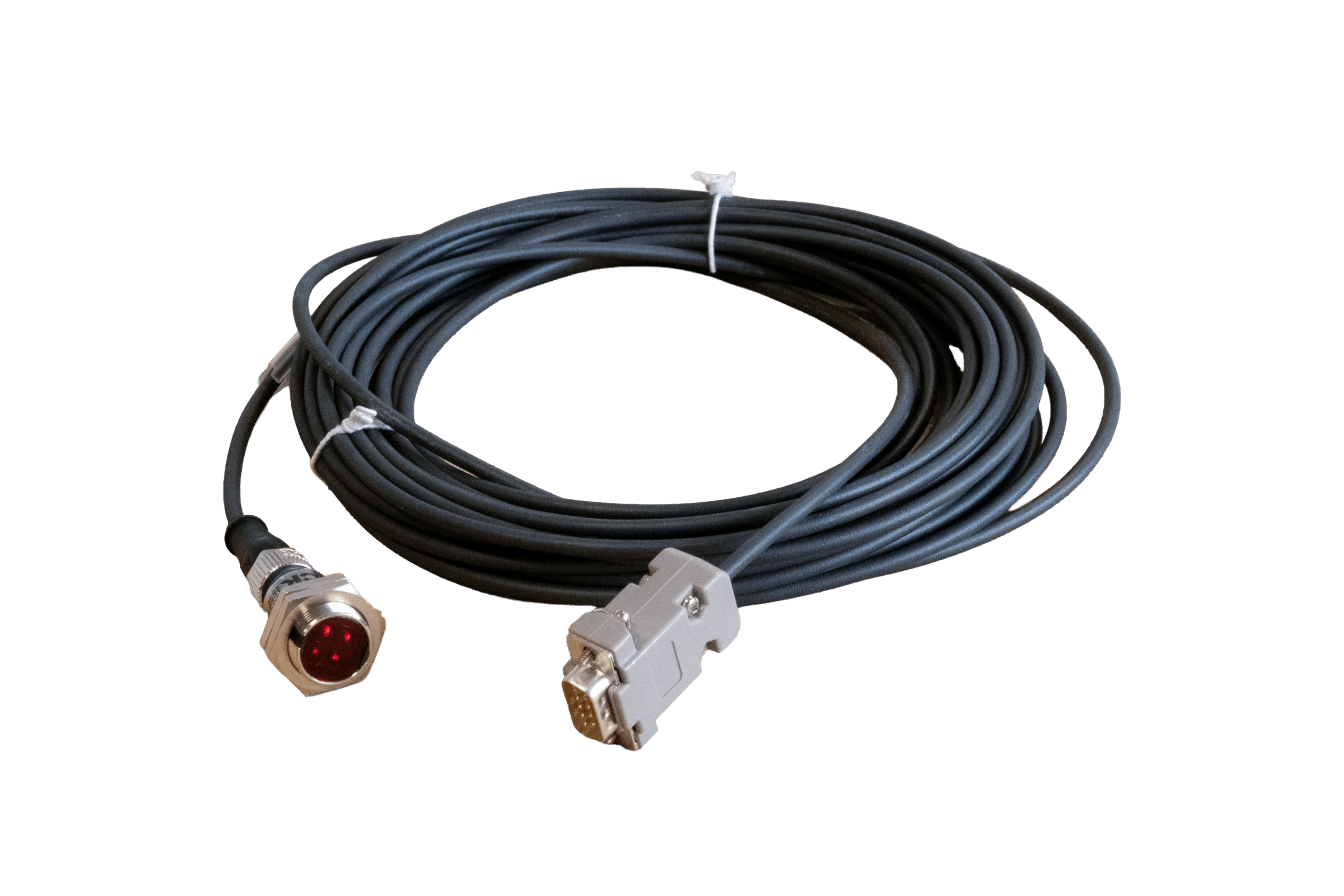

| Scope of delivery | Photosensor with connecting cable included |
