Fine adjustment Ø16 mm
Fine-tuning for the precise alignment of print modules and sensors
The Ø 16 mm fine-adjustment mechanism allows for the precise positioning of print modules and sensors within the tripod system. In addition to quick coarse adjustments, the position can be precisely adjusted in 0.1 mm increments using the adjustment wheel.
Technical highlights
Fine adjustment
In 0.1-mm increments
Coarse Adjustment
In the millimeter range
Maximum Load Capacity
2 kg
Tripod tube
Ø 16 × 250 mm
Application
Print Modules and Sensors
Technical specifications

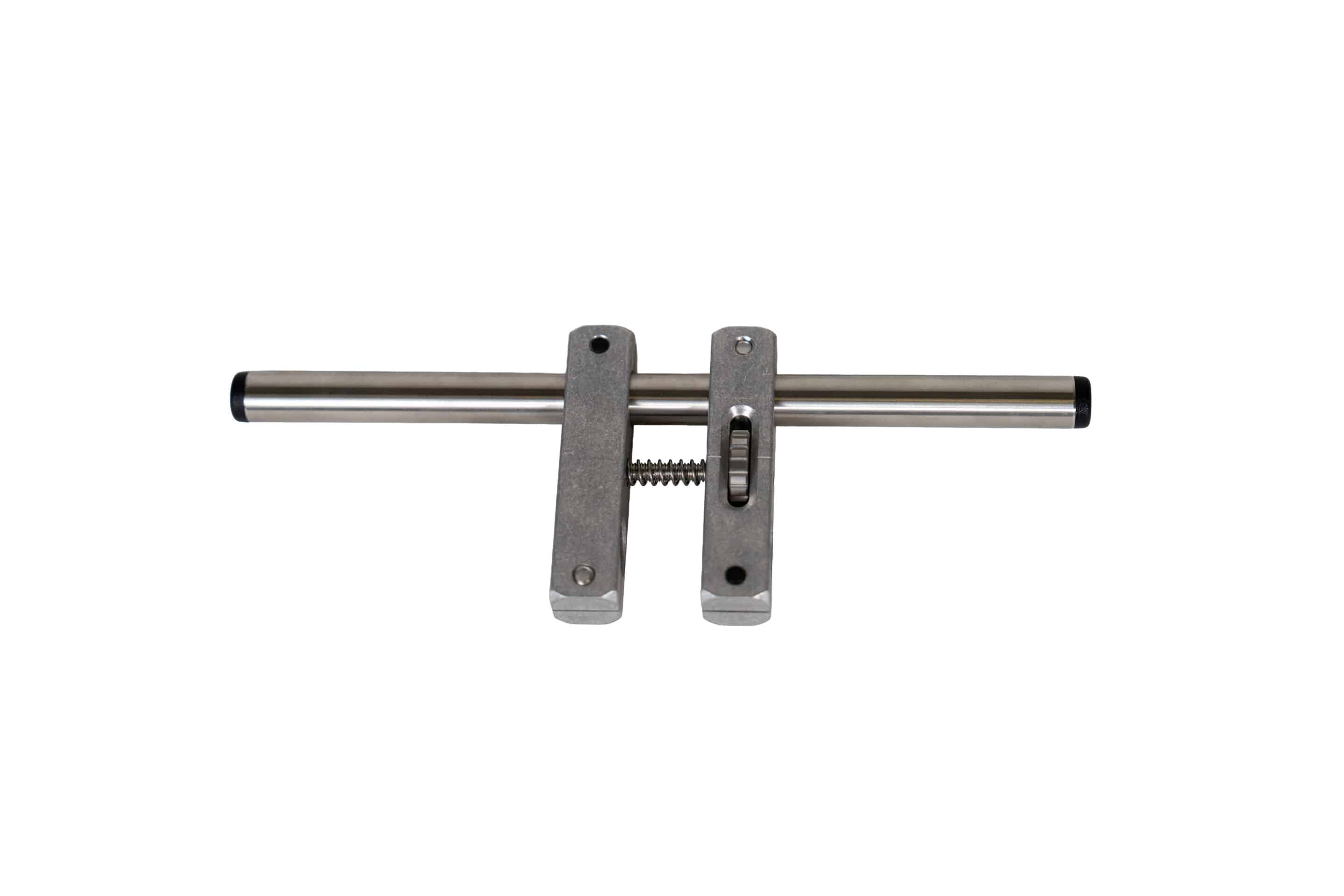

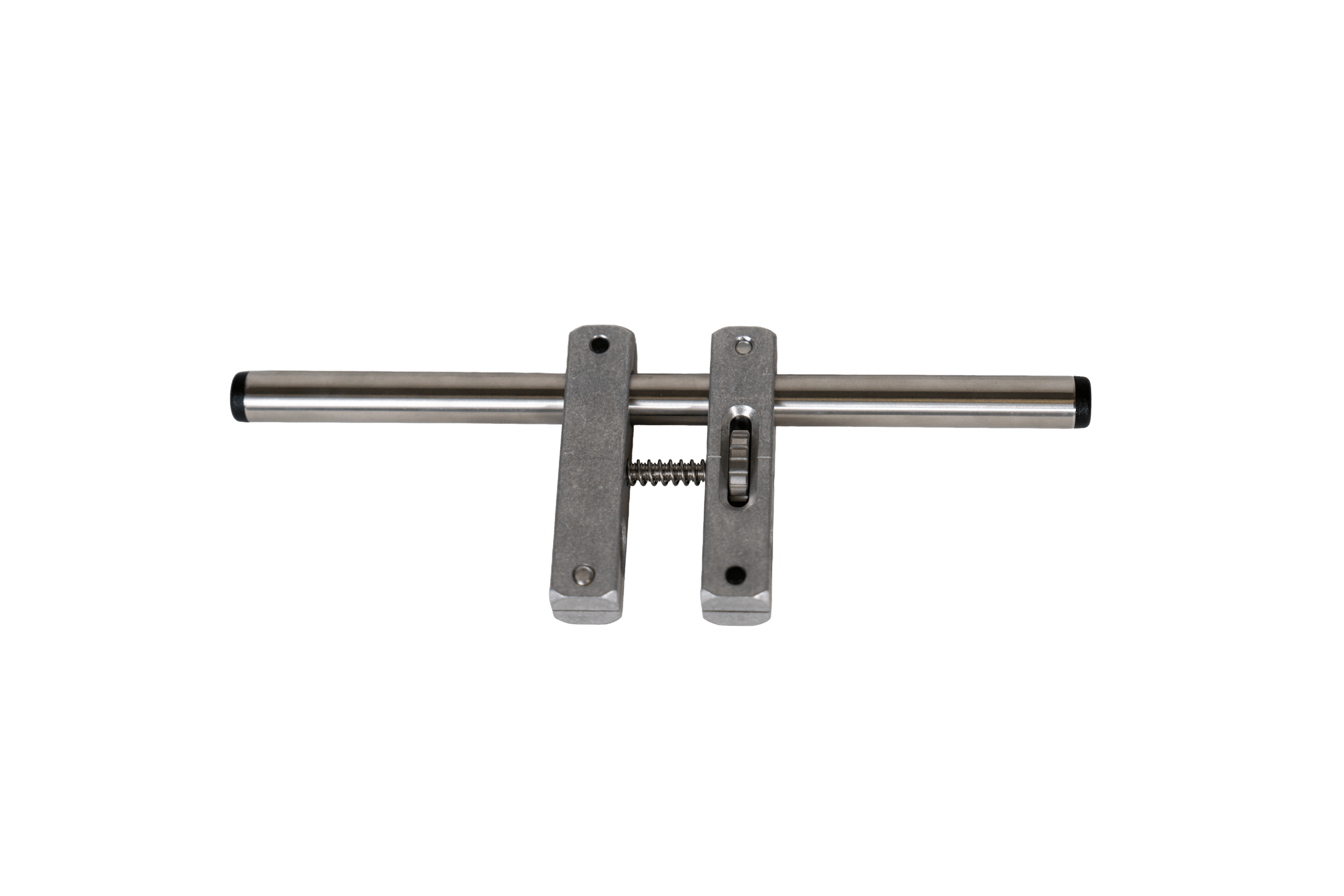

Fine adjustment Ø16 mm in use
| Maximum Load Capacity | 2 kg |
|---|---|
| Fine adjustment | In increments of 0.1 mm |
| Coarse Adjustment | High-speed positioning with millimeter precision |
| Design | Fine-adjustment unit with an adjustment screw |
| Application | Precise positioning of print modules or sensors |
| Tripod tube | Ø 16 × 250 mm |
| Tripod Tube Material | Stainless steel |
| Tools Required | Allen wrench, size 5 |
| Scope of delivery | 1× fine-adjustment unit, 1× tripod tube |
| Compatibility | REINER jetAxis 100, Tripod for jetAxis Ø 16 mm BASIC |
